Components and components location

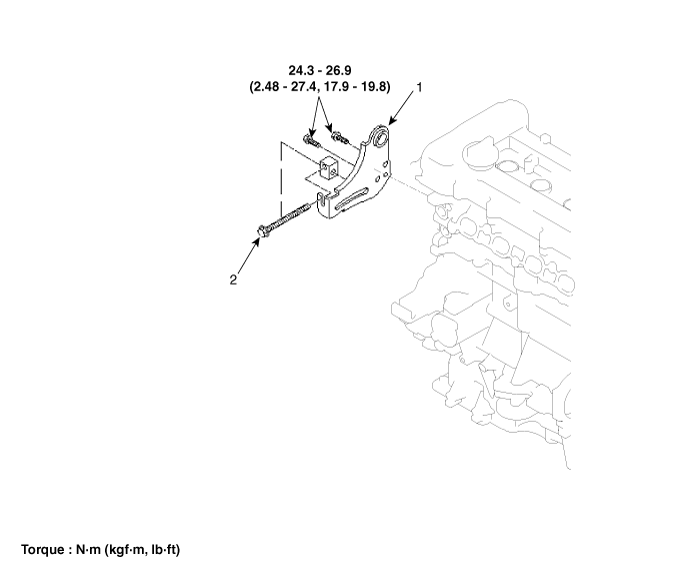

Components

1. Drive belt tensioner
2. Tensioner asjustment bolt

Repair procedures
Removal and Installation
1.

Remove the drive belt.

(Refer to Drive belt System - "Drive belt")

2.

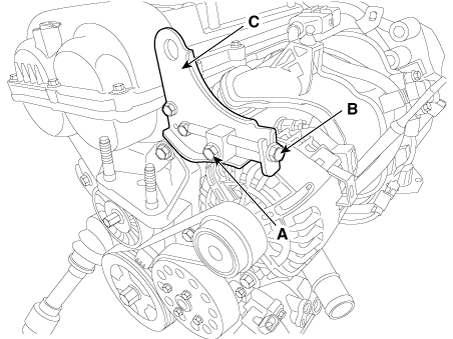

Loosen the alternator upper mounting bolt (A).

Tightening torque :

26.5 - 37.3 N·m (2.7 - 3.8 kgf·m, 19.5 - 27.5 lb·ft) [10T Type]

24.3 - 26.9 N·m (2.48 - 2.74 kgf·m, 17.9 - 19.8 lb·ft) [8T Type]

3.

Loosen the adjusting bolt (B).

4.

Remove the alternator bracket (C).

Tightening torque :

24.3 - 26.9 N·m (2.48 - 2.74 kgf·m, 17.9 - 19.8 lb·ft)

5.

Install in the reverse order of removal.

6.

After installing the alternator bracket, adjust the drive belt tension by tightening adjusting bolt.

(Refer to Drive Belt System - "Drive Belt")
