Components and components location

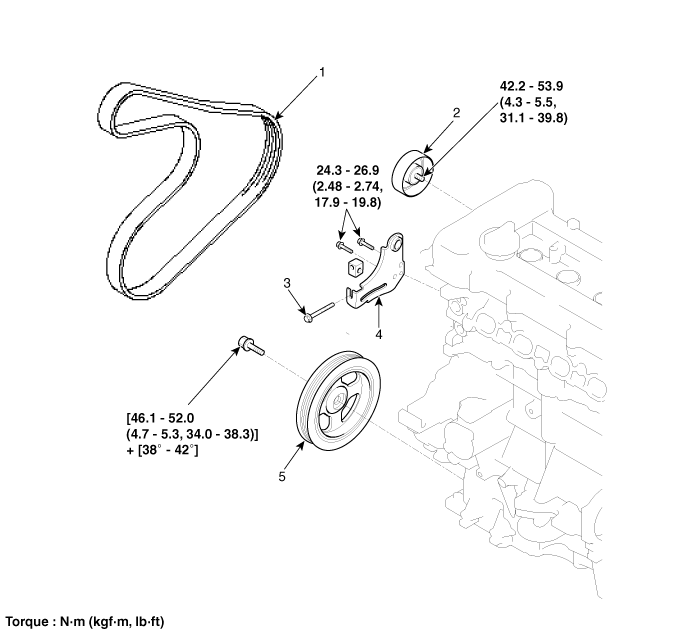

Components

1. Drive belt
2. Idler
3. Tension adjust bolt
4. Drive belt tensioner
5. Crankshaft damper pulley
