Kia Forte: Light bulbs / Side repeater lamp (Bulb type)
bulb replacement

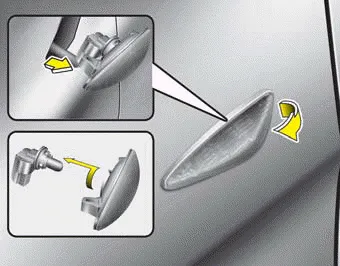

1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens
parts by turning the socket counterclockwise
until the tabs on the
socket align with the slots on the
lens part.
4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the
lens part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the
body of the vehicle.
Day time running lamp
(Bulb type) replacement
If the Day time running lamp (DRL)
(1) does not operate, have the vehicle
checked by an authorized Kia
dealer.
Side repeater lamp (LED type)
...
1. Open the trunk lid.
2. Open the service cover.
3. Remove the nuts from the vehicle.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket f ...
