Kia Forte: Power Windows / Power Window Switch
Schematic diagrams

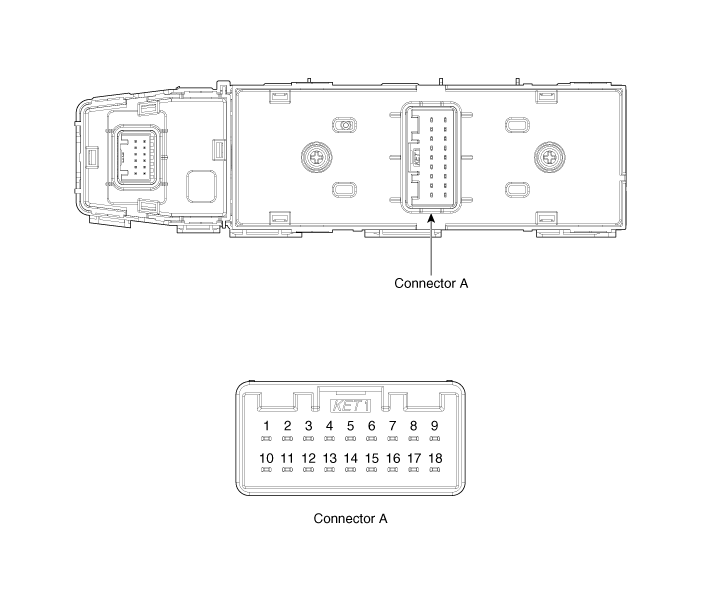

| Connector and Terminal Function |
[Driver Safety Power Window Switch]
|
Pin |
Function |
Pin |
Function |
|
1 |
Right side front power window (Up) |
10 |
Right side rear power window (Up) |
|
2 |
Door lock switch |
11 |
Right side rear power window (Down) |
|
3 |
- |
12 |
Battery (+)_right side |
|
4 |
Right side front power window (Down) |
13 |
Tail lamp |
|
5 |
Left side window lcok switch |
14 |
Right window lock switch |
|
6 |
Door unlock switch |
15 |
Left side rear power window (Up) |
|
7 |
Ground |
16 |
Left side rear power window (Down) |
|
8 |
Left side front ground |
17 |
- |
|
9 |
Left side front safety window |
18 |
Battery (+)_left side |
[Auto Down]
|
Pin |
Function |
Pin |
Function |
|
1 |
Right side front power window (Up) |
10 |
- |
|
2 |
Door lock switch |
11 |
- |
|
3 |
- |
12 |
Battery (+)_right side |
|
4 |
Right side front power window (Down) |
13 |
Tail lamp |
|
5 |
- |
14 |
- |
|
6 |
- |
15 |
- |
|
7 |
Left side front power window (Up) |
16 |
- |
|
8 |
Ground |
17 |
- |
|
9 |
Left side front power window (Down) |
18 |
Battery (+)_left side |
Repair procedures
| Inspection |
| 1. |
Remove the front left door trim. (Refer to Body - "Front Door Trim") |
| 2. |

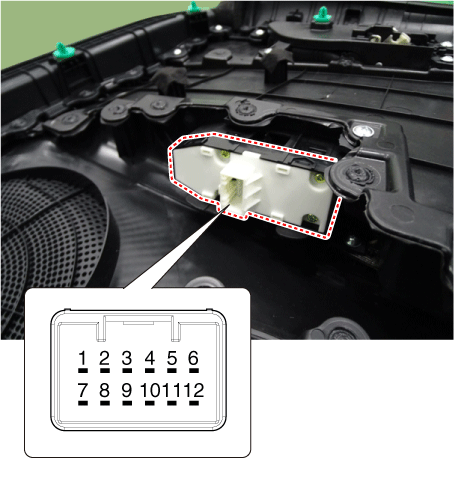

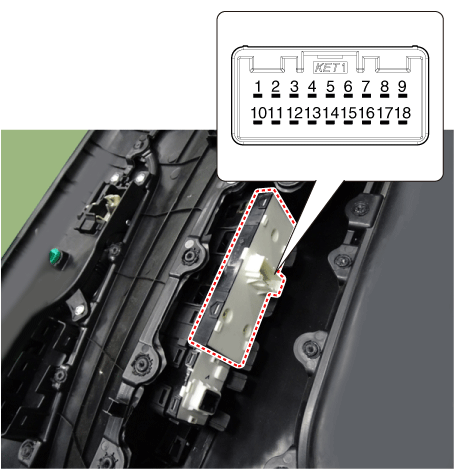

Check for continuity between the terminals in each switch position according to the table.

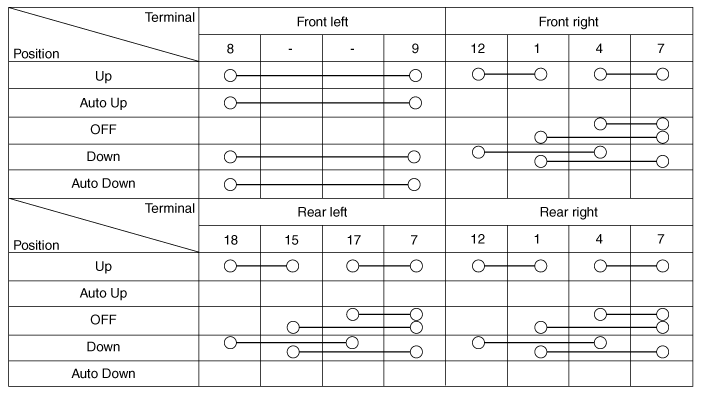

[Driver Safety & Auto Up/Down]

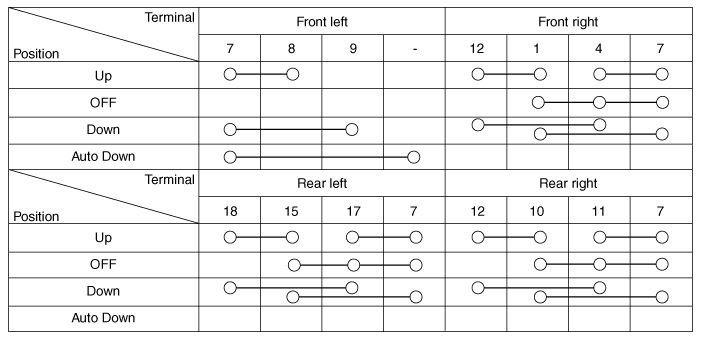

[Auto Down]
|
Assist / Rear Power Window Switch
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front right door trim. / Remove the rear door trim. (Refer to Body - "Front Door Trim") (Refer to Body - "Rear Door Trim") |
| 3. |

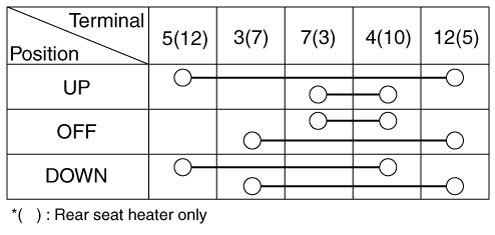

Check for continuity between the terminals in each switch position according to the table.
|
| Removal |
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
Driver Power Window Switch
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the driver front door trim. (Refer to Body - "Front Door Trim") |
| 3. |

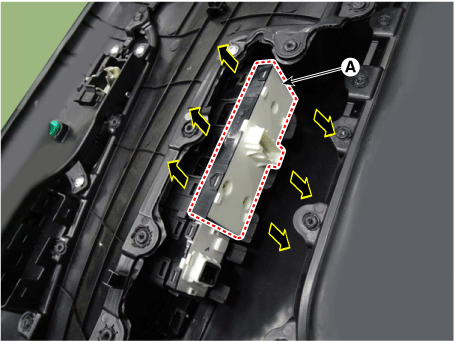

Remove the power window switch assembly (A) by pulling out both ends of the switch holders.
|
Assist / Rear Power Window Switch
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front right door trim. / Remove the rear door trim. (Refer to Body - "Front Door Trim") (Refer to Body - "Rear Door Trim") |
| 3. |

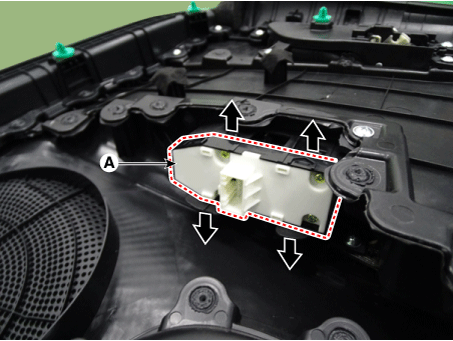

Remove the power window switch assembly (A) by pulling out both ends of the switch holders.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Power Window Motor
Schematic diagrams
Circuit Diagram
[Safety Window Motor]
[Standard Window Motor]
Repair procedures
Inspection
...
Rear Glass Defogger
Components and components location
Component Location
1. Integrated central control
unit (ICU)
2. Rear glass defogger switch (Manual)
3. Rear glass defogger ...
