Service data
Service Data
Ignition System

Ignition Coil

Item
Specification
Secondary Coil [at engine 1000RPM]
Input Voltage (V)
13.5
Dwell Time (ms)
3.94
Spark Current (mA)
Over 96
Spark Duration Time (ms)
Over 1.45
Pin
4

Spark plug

Item
Specification
Type
SILZKR8E8G
Gap
0.7 - 0.8 mm
(0.028 - 0.31 in.)

Condenser

Item
Specification
Capacitance (uF)
0.47 [1KHz]
Insulation resistance (MΩ)
1,000 [DC 500 V/ 1 Min]

Charging System

Alternator

Item
Specification
Rated voltage
13.5V, 130A
Speed in use
1,000 - 18,000 rpm
Pin
3 (C, L, FR)
Pulley Type
OAD Pulley
Voltage regulator
IC Regulator built - in type
Regulator Setting Voltage (Internal mode)
14.55 ± 0.3V
Regulator Setting Voltage (External mode)
C - Terminal
Frequency (Hz)
115 - 500
Voltage (V)
High : 3.3 - 3.7
Low : 1.3 - 1.7
Signal Type
PWM
FR - Terminal
Frequency (Hz)
212 - 288
Current (mA)
2.7 - 7
Signal Type
PWM

Battery

▷CMF60L - DIN

Item
Specification
Capacity [20 hr / 5 hr] (AH)
60 / 48
Cold Cranking Amperage (A)
550 (SAE) / 440 (EN)
Reserve Capacity (Min)
92
Specific Gravity
1.27 - 1.29 [25°C(77°F)]
Voltage (V)
12


•

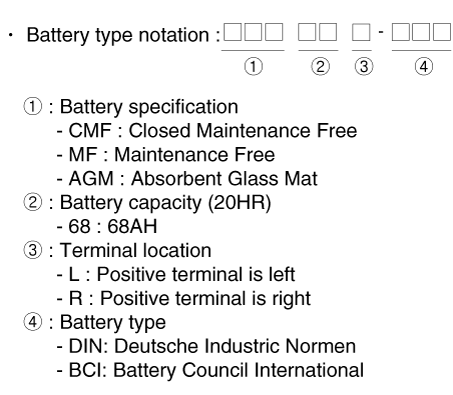

Model type description

•

Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

–

The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.

–

The higher the CCA rating, the greater the starting power of the battery.

•

RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.

–

The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.

–

The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

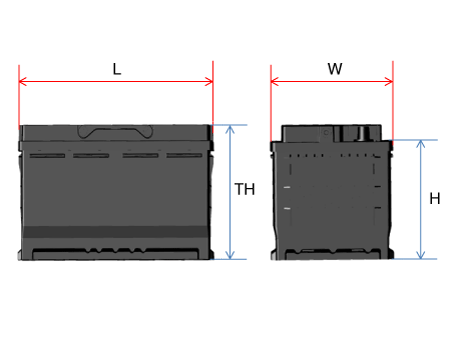

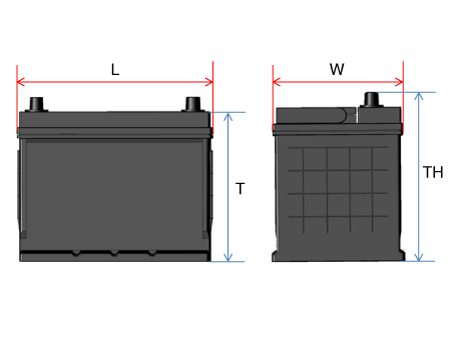

BCI Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
28/35
188 - 192
126 - 130
198 - 202
218 - 222
32/40
194 - 198
133 - 137
199 - 203
223 - 227
36/45
203 - 207
173 - 177
200 - 204
221 - 225
44/55
213 - 217
173 - 177
198 - 202
218 - 222
48/60
228 - 232
173 - 177
200 - 204
221 - 225
54/68
258 - 262
173 - 177
198 - 202
220 - 224
56/70
258 - 262
173 - 177
198 - 202
223 - 227
64/80
274 - 278
170 - 174
198 - 202
221 - 225
70/88
349 - 353
172 - 176
186 - 200
183 - 187
72/90
300 - 304
170 - 174
200 - 204
221 - 225
76/95
294 - 298
172 - 176
198 - 202
220 - 224
80/100
326 - 330
170 - 174
203 - 207
225 - 229

DIN Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
36/45
205 - 207
173 - 175
164 - 168
188 - 190
48/60
240 - 242
173 - 175
164 - 168
188 - 190
54/68
276 - 278
173 - 175
164 - 168
188 - 190
64/80
313 - 315
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
80/100
351 - 353
173 - 175
164 - 168
188 - 190
88/110
392 - 394
173 - 175
164 - 168
188 - 190

AGM DIN Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
40/50
205 - 207
173 - 175
164 - 168
188 - 190
48/60
227 - 229
173 - 175
164 - 168
188 - 190
56/70
276 - 278
173 - 175
164 - 168
188 - 190
64/80
312 - 314
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
84/105
392 - 394
173 - 175
164 - 168
188 - 190

Battery Sensor

Item
Specification
Rated Voltage (V)
12 - 14
Quiescent Current (uA)
Max. 175
Pin
2 (B+, LIN)

Starting System

Starter

Item
Specification
Rated voltage
12 V, 0.9 kW
The number of pinion teeth
11
Performance
[No - load, 11.5 V]
Ampere
Max. 60 A
Speed
Min. 5,500 rpm

Tightening torque
Tightening Torques

Item
N·m
kgf·m
lb·ft
Ignition coil mounting bolt
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Spark plug
14.7 - 24.5
1.5 - 2.5
10.9 - 18.1
Alternator "B" terminal mounting nut
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Alternator mounting upper bolt
23.5 - 26.4
2.4 - 2.7
17.3 - 19.5
Alternator mounting lower bolt
29.4 - 41.2
3.0 - 4.2
21.7 - 30.4
Alternator brace bracket assembly mounting bolt
24.3 - 26.9
2.48 - 2.74
17.9 - 19.8
Battery (+) terminal tightening nut
7.8 - 9.8
0.8 - 1.0
5.2 - 8.7
Battery (-) terminal tightening nut
3.9 - 5.9
0.4 - 0.6
2.9 - 4.3
Battery mounting bracket mounting bolt
19.6 - 29.4
2.0 - 3.0
14.4 - 21.7
Battery tray mounting bolt
19.6 - 29.4
2.0 - 3.0
14.4 - 21.7
Battery sensor cable mounting bolt (Chassis ground)
10.8 - 13.7
1.1 - 1.4
8.0 - 10.1
Starter solenoid "B" terminal mounting nut
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Starter mounting bolt
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0

Special service tools
Special Service Tools

Tool Name / Number
Illustration
Description
Alternator pulley remover wrench
09373-27000

Used for removing / installing alternator pulley
SCC reflector
09964-C1100

Reflector to align the SCC radar
Calibration beam
09964-C1200

Laser to detect the center of the vehicle.
Tripod
09964-C1300

SCC reflector or vertical / horizontal laser support.

Timing Chain
