Kia Forte: Engine Mechanical System / Timing System

Kia Forte 2019-2024 (BD) Service Manual / Engine Mechanical System / Timing System

Components and components location

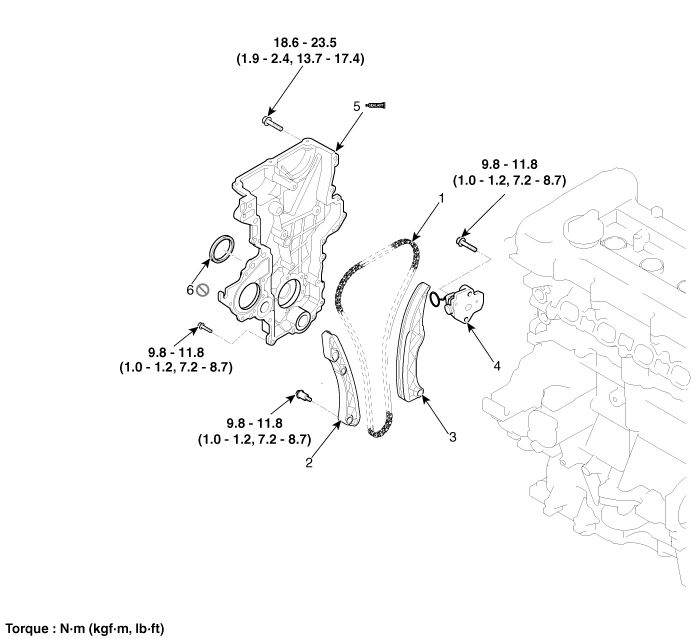

Components

1. Timing chain
2. Timing chain guide
3. Timing chain arm

4. Timing chain auto tensioner
5. Timing chain cover
6. Front oil seal

Oil Pump

Repair procedures Removal and Installation Do not disassemble the oil pump (A) from timing chain cover because it ...

Front Oil Seal

Components and components location Components 1. Front oil seal Repair procedures Replacement 1. Remove the crankshaft damper pu ...
