Kia Forte: Roof Trim / Sunvisor
Components and components location
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| • |
When removing the interior trim pieces, use a plastic panel removal
tool not to damage the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

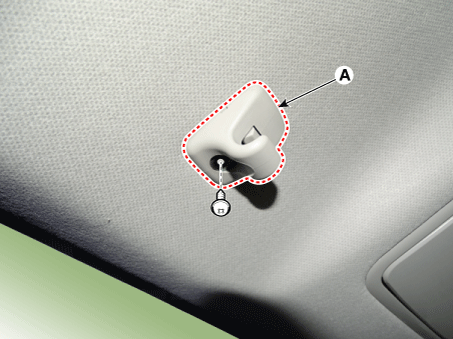

Loosen the mounting screw and seperate the sunvisor (A).
|
| 2. |

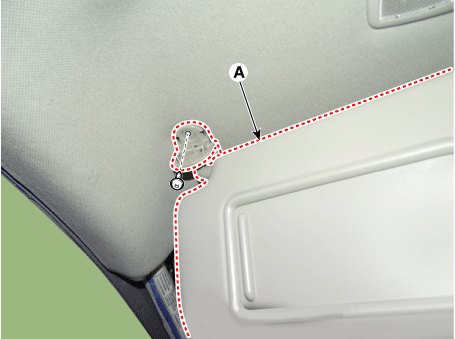

Loosen the mounting screws and remove the retainer (A).
|
| 3. |
To install, reverse the removal procedure.
|
Replace any damaged clips (or pin - type retainers).
|
|
Components and components location
Components
[General Type]

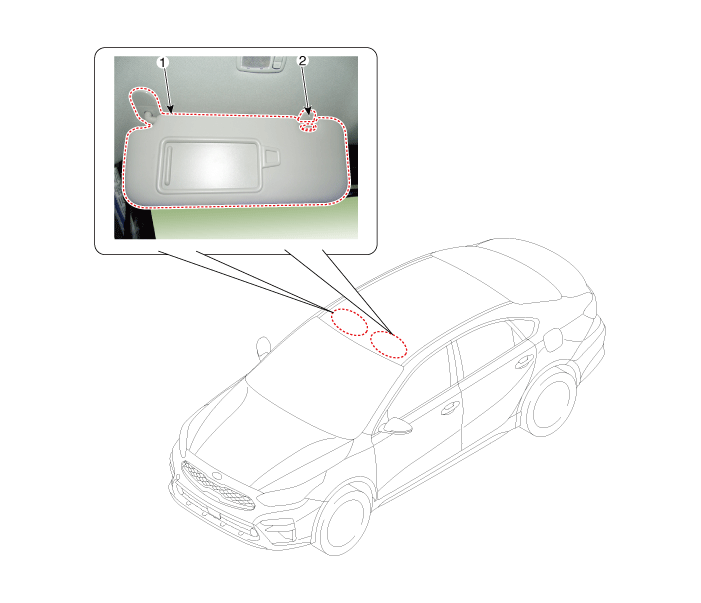

1. Roof trim
2. Retainer
3. Sunvisor
4. Assist handle bracket
[ ...
Components and components location
Component Location
1. Assist handle
Repair procedures
Replacement
