Kia Forte: Body Side Molding / Side Sill Molding

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Body Side Molding / Side Sill Molding

Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.	Loosen the side sill molding mounting screws.

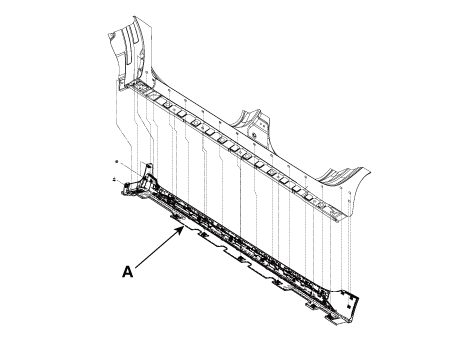

2.	Using a remover, remove the side sill molding (A).

To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
