Kia Forte: Your vehicle at a glance / Instrument panel overview

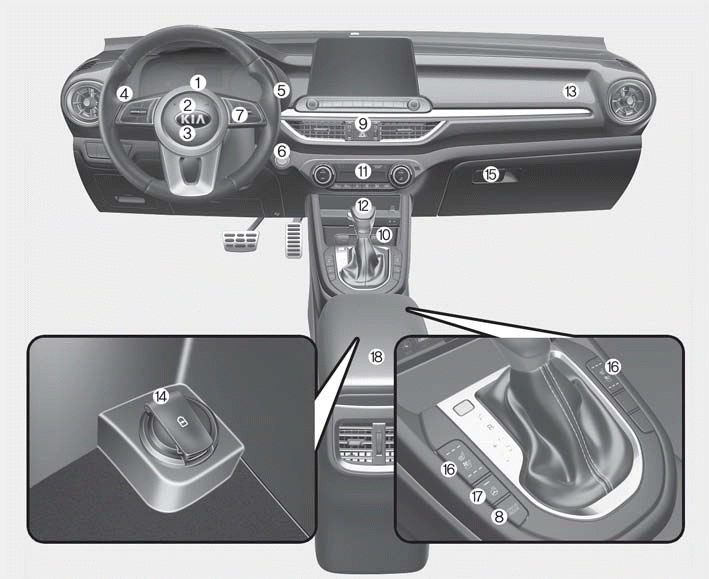

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Ignition switch or
ENGINE START/STOP button
7. Cruise control system
Smart cruise control system
8. Drive mode button
9. Hazard warning flasher switch
10. Power outlet
11. Climate control system
12. Shift lever
13. Passenger’s front air bag
14. USB charger
15. Glove box
16. Seat warmer
Seat cooler
17. Heated steering wheel switch
18. Center console storage
1. Inside door handle
2. Outside rearview mirror control
3. Outside rearview mirror folding
4. Central door lock switch
5. Power window switch
6. Power window lock button
7. Lane Keeping ...
■ Nu 2.0L MPI Engine (Gasoline)
■ Gamma 1.6L T-GDI Engine (Gasoline)
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
...
