Kia Forte: Your vehicle at a glance / Engine compartment

■ Nu 2.0L MPI Engine (Gasoline)

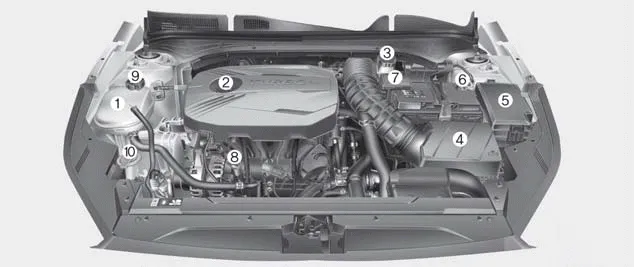

■ Gamma 1.6L T-GDI Engine (Gasoline)
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir
1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Ignition switch or
ENGINE START/STOP button
7. Cruise control system
Smart ...
Other information:
Components and components location
Components
1. Rear oil seal
Repair procedures
Replacement
1.
Remove the transaxle assembly.
Manual Transaxle System:
(Refer to Manual Transaxle System - "Manual Transaxle")
DCT ...
WARNING
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiving
an electric shock.
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it
straight out ...
