Specification |
HO2S [Bank 1/Sensor 1] (Linear type)
Item |
Specification |
Heater Resistance (Ω) |
2.4 - 4.0 [20°C(68°F)] |
HO2S [Bank 1/Sensor 2] (Binary type)
A/F Ratio (λ) |
Output Voltage(V) |
RICH |
0.6 - 1.0 |
LEAN |
0 - 0.4 |
Item |
Specification |
Heater Resistance (Ω) |
Approx. 9.0 [20°C(68°F)] |
Description |
Heated Oxygen Sensor (HO2S) consists of zirconium and alumina and is installed both upstream and downstream of the Manifold Catalytic Converter. The sensor output voltage varies in accordance with the air/fuel ratio.
The sensor must be hot in order to operate normally. To keep it hot, the sensor has a heater which is controlled by the ECM via a duty cycle signal. When the exhaust gas temperature is lower than the specified value, the heater warms the sensor tip.

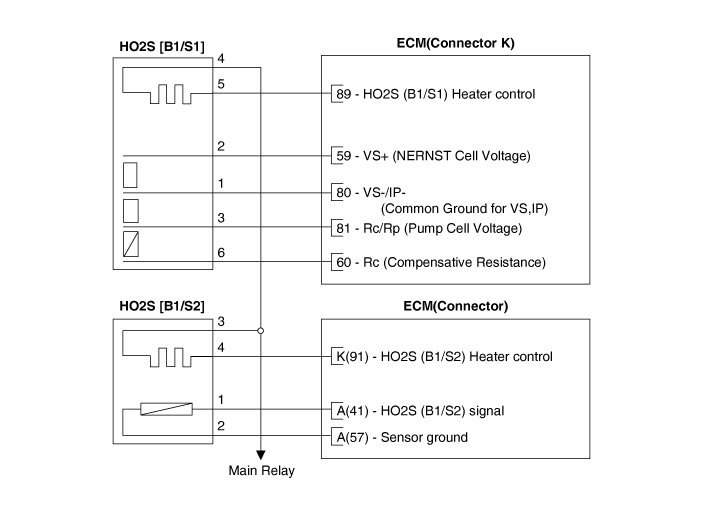

Circuit Diagram |

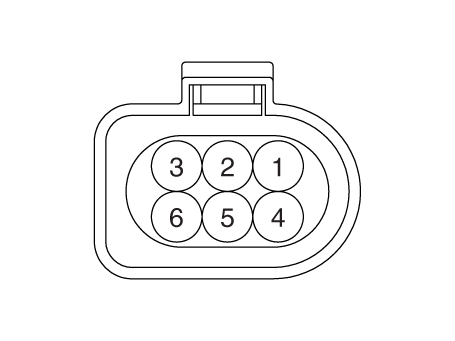

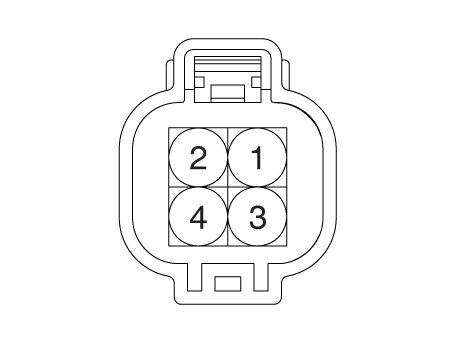

Harness Connector
HO2S [Bank1 / Sensor 1]
HO2S [Bank1 / Sensor 2]
Inspection |
1. |
Turn the ignition switch OFF. |
2. |
Disconnect the HO2S connector. |
3. |
Measure resistance between the HO2S terminals 2 and 5 [B1/S1].
|
4. |
Measure resistance between the HO2S terminals 3 and 4 [B1/S2].
|
5. |
Check that the resistance is within the specification. |
Removal & Installation |
Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor. |
1. |
Turn the ignition switch OFF and disconnect the battery negative (-) terminal. |
2. |

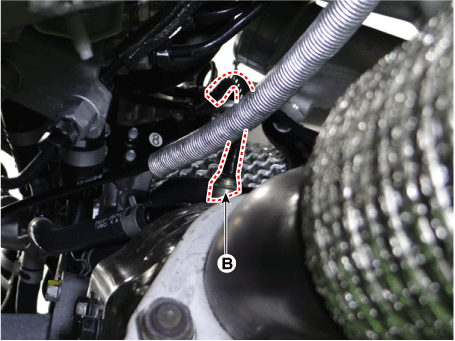

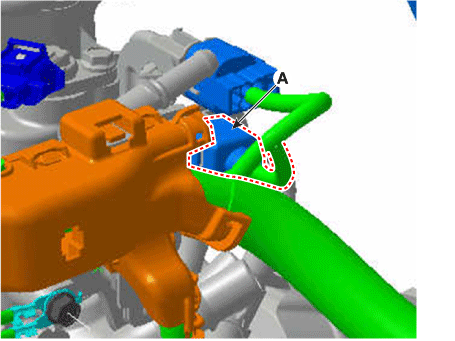

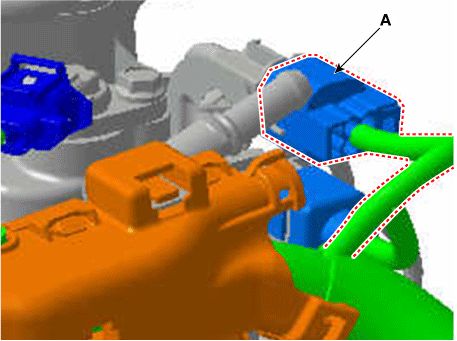

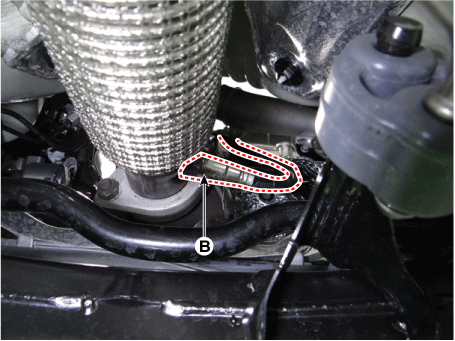

Disconnect the connector (A), and then remove the sensor (B).
[Bank 1 / Sensor 1]
[Bank 1 / Sensor 2]
|
3. |
Install in the reverse order of removal.
|
