Kia Forte: ESC (Electronic Stability Control) System / Front Wheel Speed Sensor

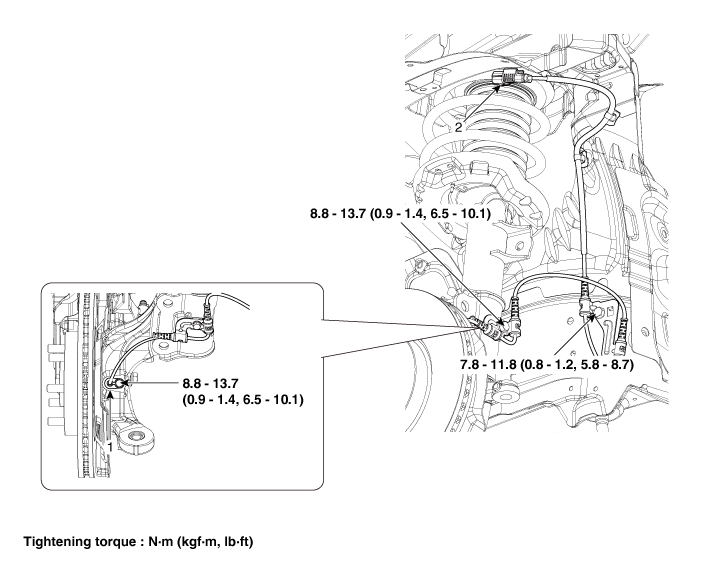

Components and components location
1. Front wheel speed sensor
|
2. Front wheel speed sensor connector
|
Repair procedures
1. |
Disconnect the battery negative terminal.
|
2. |

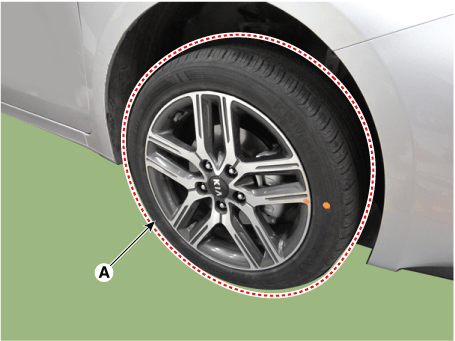

Remove the front wheel and tire (A).
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
Be careful not to damage to the hub bolts when removing the front
wheel and tire.
|
|
3. |

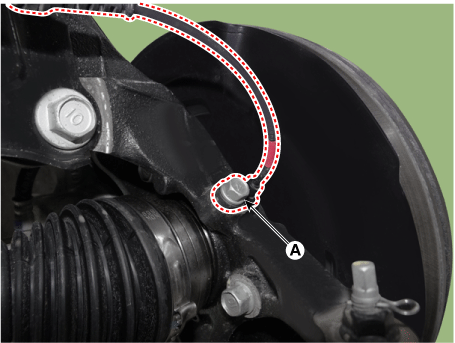

Disconnect the front wheel speed sensor (A).
Tightening torque :
8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
|
|
4. |

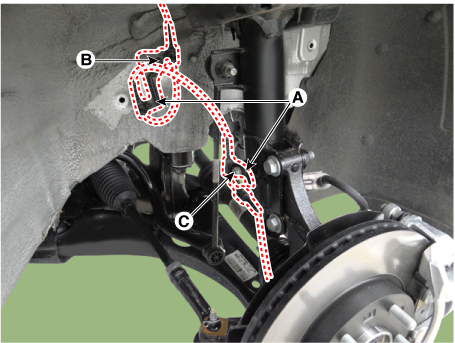

Disconnect the front wheel speed sensor brackets (A) by loosening the
bolts.
Tightening torque :
Bolt (B) : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
Bolt (C) : 8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
|
|
5. |
Remove the front wheel guard.
(Refer to Body - "Front Wheel Guard")
|
6. |

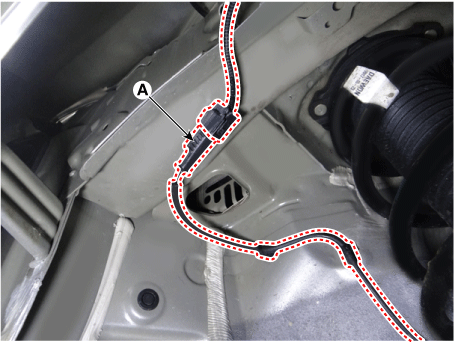

Disconnect the connector (A) and then remove the front wheel speed sensor.
|
7. |
Install in the reverse order of removal.
|
1. |

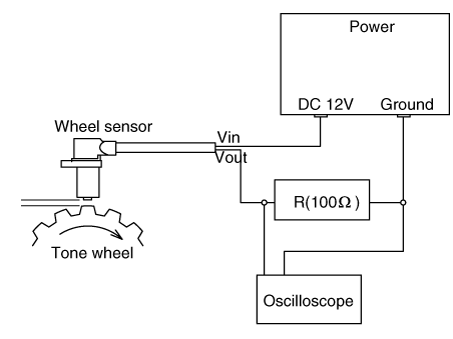

Measure the output voltage between the terminal of the wheel speed sensor
and the body ground.
In order to protect the wheel speed sensor, when measuring output
voltage, a 100 Ω resister must be used as shown.
|
|
2. |

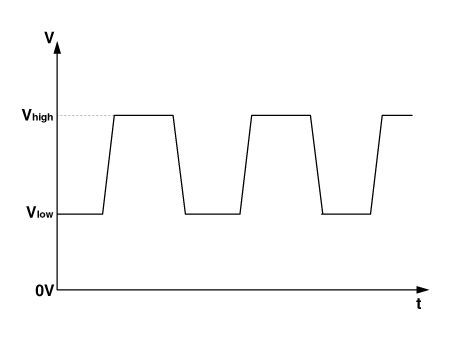

Compare the change of the output voltage of the wheel speed sensor to
the normal change of the output voltage as shown below.
V_low : 0.59V - 0.84V
V_high : 1.18V - 1.68V
Frequency range : 1 - 2,500Hz
|
|
