Kia Forte: Front Seat / Front Seat Shield Inner Cover

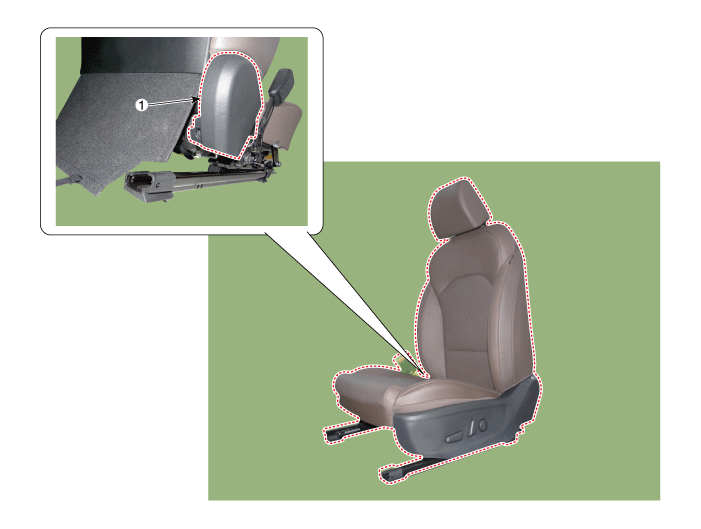

Components and components location
1. Front seat shield inner cover
|
|
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat - tip screwdriver or remover, wrap
protective tape around the tools to prevent damage to components.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
| 2. |
Remove the front seat lower protector (A).
|
| 3. |

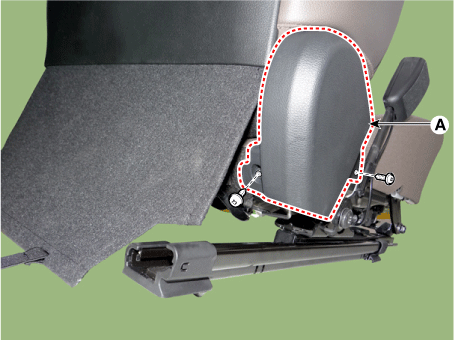

Loosen the screws and remove the front seat shield inner cover (A).
|
| 4. |
To install, reverse the removal procedure.
|
Replace any damaged clips (or pin - type retainers).
|
|
Components and components location
Component Location
1. Front seat shield outer cover
Repair procedures
Replacement
...
Components and components location
Component Location

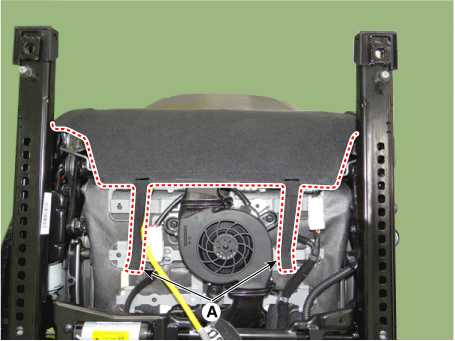

1. Front seat back cover
Repair procedures
Replacement
...
