Kia Forte: Front Door / Front Door Inside Handle

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

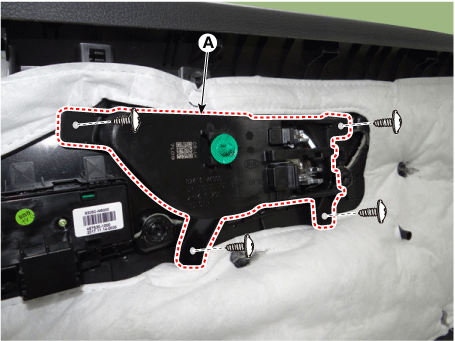

2.	After loosening the mounting screws, remove the front door inside handle (A).

To install, reverse the removal procedure.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin - type retainers).
