Kia Forte: RCCW (Rear Cross-Traffic
Collision Warning) / Warning type

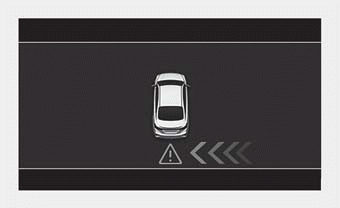

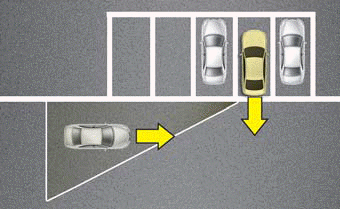

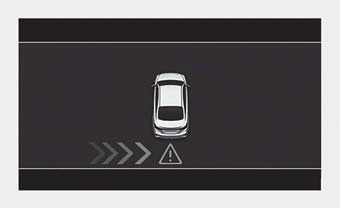

If the vehicle detected by the sensors
approaches your vehicle, the warning
chime will sound, the warning
light on the outside rearview mirror
will blink and a message will appear
on the LCD display.
✽ NOTICE
- The warning chime will turn off:
- When the detected vehicle moves
out of the sensing area or
- If your vehicle is moved away
from the detected vehicle or
- When the vehicle is right behind
your vehicle or
- When the vehicle is not
approaching your vehicle or
- When the other vehicle slows
down.
- The system may not operate properly
due to other factors or circumstances.
Always pay attention to your surroundings.
- If the sensing area near the rear
bumper is blocked by either a
wall, barrier, or parked vehicle,
the system sensing area may be
reduced.
WARNING
- When the BCW system is activated,
the warning light on the
outside rearview mirror will
illuminate whenever a vehicle
is detected at the rear side by
the system.
To avoid accidents, do not
focus only on the warning
light and neglect to see the
surroundings of the vehicle.
- Drive safely even though the
vehicle is equipped with a
BCW (Blind-Spot Collision
Warning) system. Do not solely
rely on the system but
check the blind spot area for
yourself before changing
lanes.
The system may not alert the
driver in some conditions, so
always check the surroundings
while driving.
- The Blind-Spot Collision
Warning system (BCW) and
Rear Cross-Traffic Collision
Warning (RCCW) are not substitutes
for proper and safe
driving practices. Always
drive safely and use caution
when changing lanes or backing
up your vehicle.The Blind-
Spot Collision Warning system
(BCW) may not detect
every object alongside the
vehicle.
CAUTION
- The system may not work properly
if the bumper has been
replaced or if repair work has
been done near the sensor.
- The detection area differs
according to the width of the
road. If the road is narrow, the
system may detect other vehicles
two lanes away.
- Also, if the road is very wide,
the system may not detect
other vehicles in the next lane.
- The system might be turned
off due to strong electromagnetic
waves.
• Go to “User Settings → Driving
Assist and select Rear Cross
Traffic Collision Warning” on the
LCD display.
The system will turn on and standby
to activate. If you deactivate this
...
The sensor may be limited when the
conditions below exist.
If there is a problem with the BCW
system, a warning message will
appear and the light on the switch
will turn off. The system wil ...
