Kia Forte: Cruise Control System / To set cruise control speed

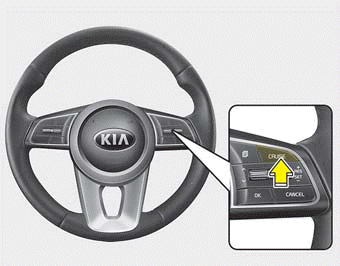

1. Press the CRUISE button on the
steering wheel to turn the system
on. The CRUISE indicator light in
the instrument cluster will illuminate.
2. Accelerate to the desired speed,
which must be more than 30 km/h
(20 mph).

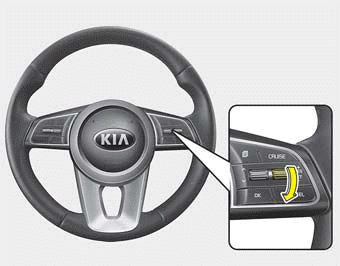

3. Move the lever down (to SET-),
and release it at the desired
speed. The SET speed on the
LCD screen will appear. Release
the accelerator at the same time.
The desired speed will automatically
be maintained.
On a steep grade, the vehicle may
slow down slightly when driving uphill
or speed up slightly while going downhill.
The cruise control system allows you
to program the vehicle to maintain a
constant speed without depressing
the accelerator pedal.
This system is designed to function
above approximately 30 ...
Follow either of these procedures:
Move the lever up (to RES+) and
hold it.Your vehicle SET speed will
increase by 10 km/h (5 mph).
Release the lever at the speed you
want.
Move th ...
