Kia Forte: Driver Attention Warning (DAW) / System setting and activation
System setting
- The Driver Attention Warning system
is set to be the Normal position
when your vehicle is first delivered
to you from the factory.
- To turn ON the Driver Attention
Warning system, turn on the
engine and then select 'User
Settings → Driver Assistance →
DAW (Driver Attention Warning) →
High sensitivity/Normal sensitivity/
Off' on the LCD display.
- The driver can select the Driver
Attention Warning system mode.

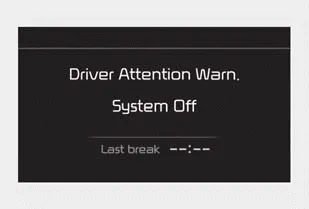

- Off : The Driver Attention Warning
system is deactivated.
- Normal sensitivity : The Driver
Attention Warning system alerts
the driver of his/her fatigue level
or inattentive driving practices.
- High sensitivity : The Driver
Attention Warning system alerts
the driver of his/her fatigue level
or inattentive driving practices
faster than Normal mode.
- The Driver Attention Warning system
mode will be maintained, as
selected, when the engine is
restarted.
Display of the driver's attention
level
- The driver can monitor their driving
conditions on the LCD display.
- Select 'User Settings Mode' and
then 'Driver Assistance' on the
LCD display. (For more information,
refer to the “LCD Display”
section in Chapter 4.)

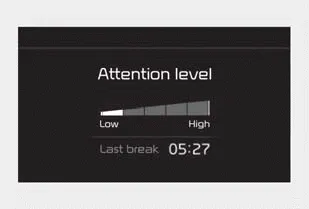

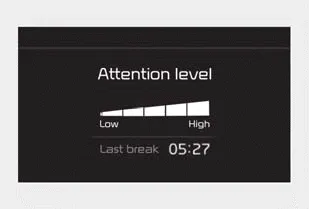

- The driver's attention level is displayed
on a scale of 1 to 5. The
lower the number is, the more inattentive
the driver is.
- The number decreases when the
driver does not take a break for a
certain period of time.
- The number increases when the
driver attentively drives for a certain
period of time.
- When the driver turns on the system
while driving, it displays ‘Last
Break time’ and level reflected that.
Take a break

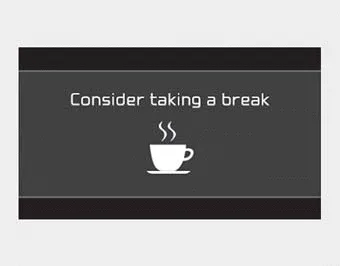

- The “Consider taking a break”
message appears on the LCD display
and a warning sounds in order
to suggest that the driver take a
break when the driver's attention
level is below 1.
- The Driver Attention Warning system
will not suggest a break when
the total driving time is shorter than
10 minutes.
The Driver Attention Warning (DAW)
system is designed to warn the driver
of potentially hazardous driving
situations if it detects inattentive
driving practices. ...
Resetting the system
The last break time is set to 00:00
and the driver's attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Warning system.
T ...
