Kia Forte: Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

Kia Forte 2019-2024 (BD) Service Manual / Body Electrical System / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor

Schematic diagrams

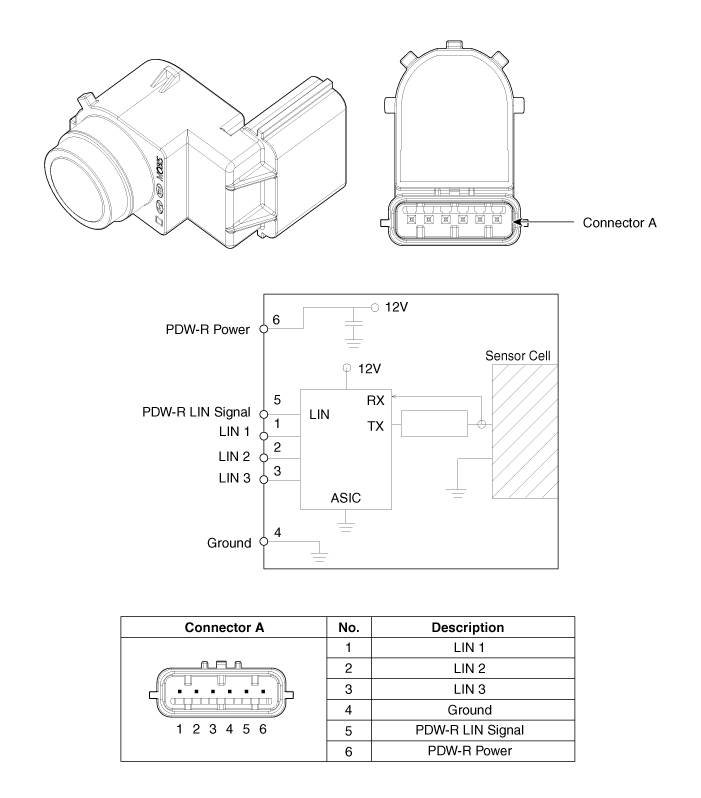

Circuit Diagram

Repair procedures

Removal

Parking Distance Warning-Forward (PDW-F) Sensor

1.	Remove the under cover. Nu 2.0 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover") Gamma 1.6 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

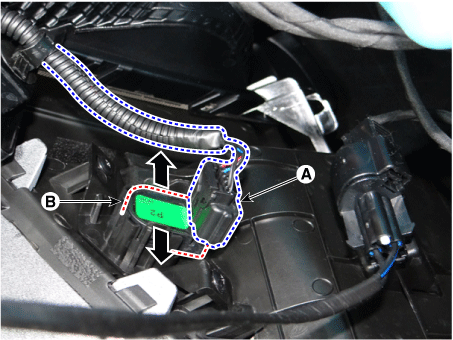

2.	Disconnect the connector (A), then remove the PDW-F sensor (B) by opening the sensor holder (B).

Parking Distance Warning-Reverse (PDW-R) Sensor

1.	Remove the rear bumper beam assembly. (Refer to Body - "Rear Bumper Beam Assembly")

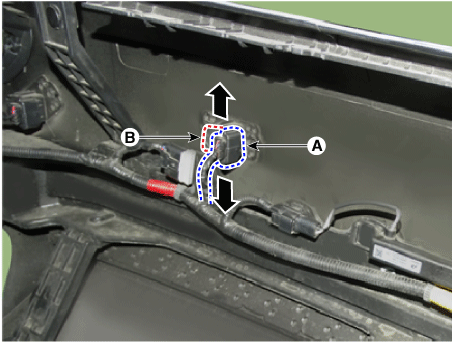

2.	Disconnect the connector (A), then remove the PDW-R sensor (B) by opening the sensor holder (B).

Installation

1.	Install in the reverse order of removal.
