Kia Forte: Scheduled maintenance service / Maintenance Under Severe Usage Conditions Turbo Models
The following items must be serviced more frequently on cars normally used

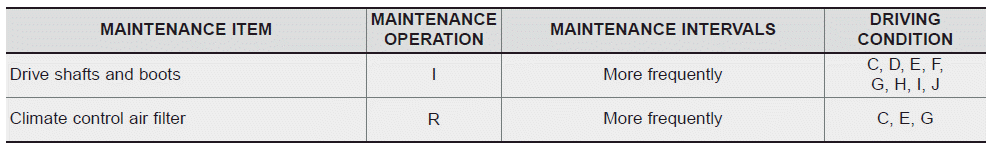

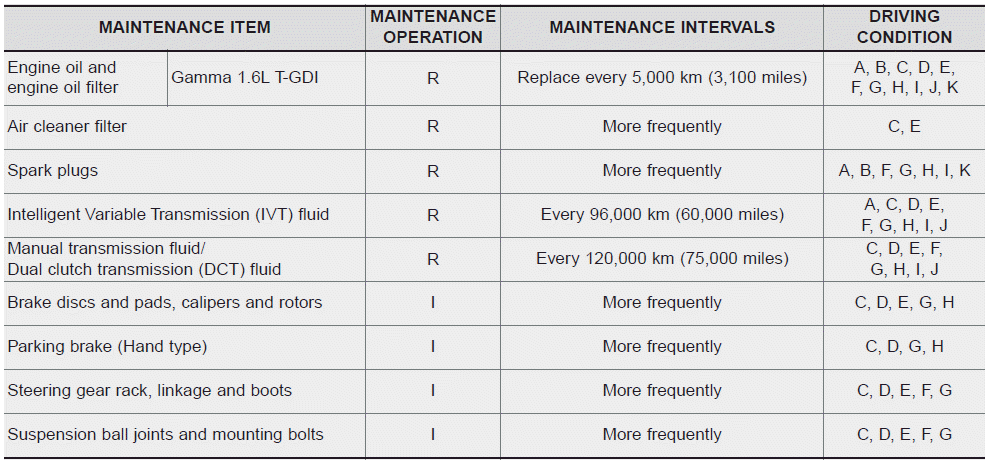

under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if
necessary
Severe driving conditions
A- Repeatedly driving short distances of less than 8 km (5
miles) in normal temperature or less than 16 km (10 miles)
in freezing temperature
B- Extensive engine idling or low speed driving for long distances
C-Driving on rough, dusty, muddy, unpaved, graveled or saltspread
roads
D-Driving in areas using salt or other corrosive materials or in
very cold weather
E-Driving in heavy dust distances
F - Driving in heavy traffic areas
G- Driving on uphill, downhill, or mountain roads repeatedly
H-Towing a Trailer, or using a camper, or roof rack
I -Driving as a patrol car, taxi, other commercial use or vehicle
towing
J - Driving over 170 km/h (106 mph)
K-Frequently driving in stop-and-go conditions
The following maintenance services must be performed to ensure good emission
control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where
both mileage ...
Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in
the maintenance schedule. If the
vehicle is being driven in severe conditions,
more frequent oi ...
