Kia Forte: Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Unit

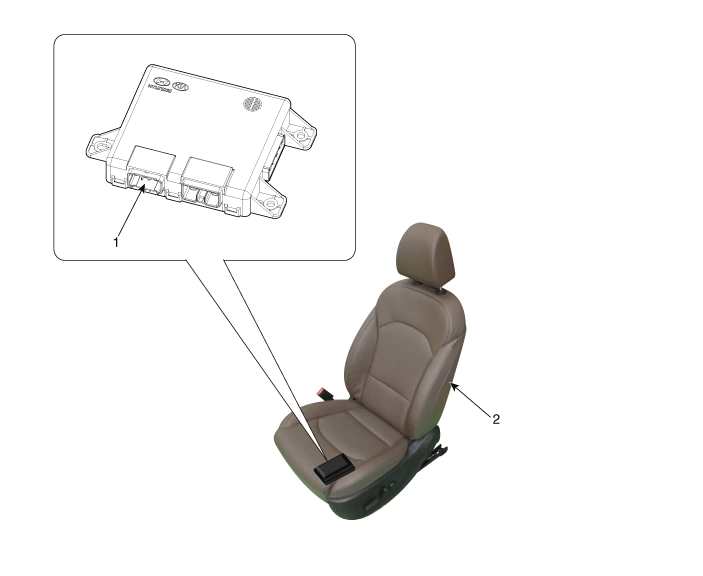

Components and components location
1. Memory power seat unit
|
2. Driver seat
|

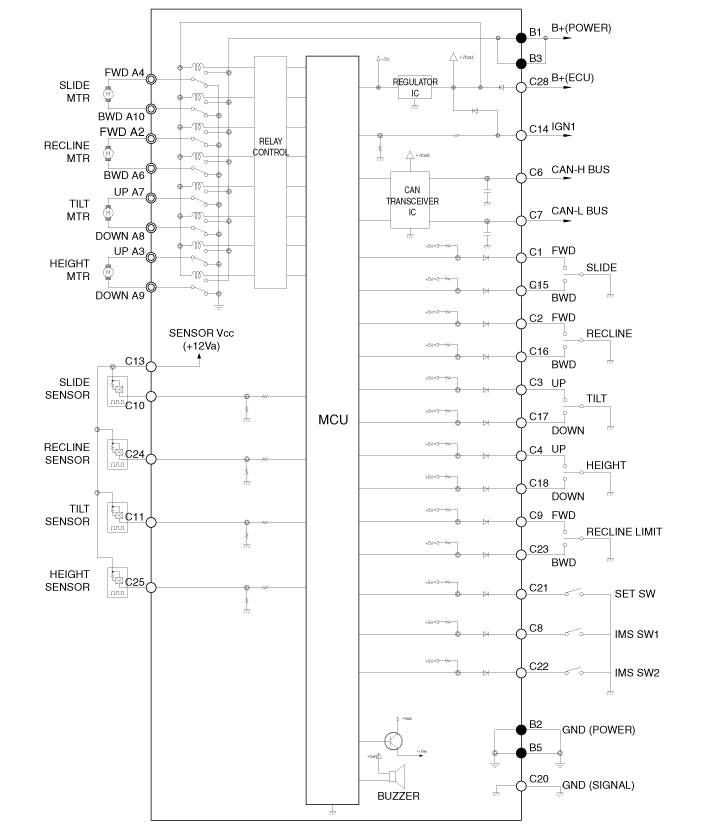

Schematic diagrams

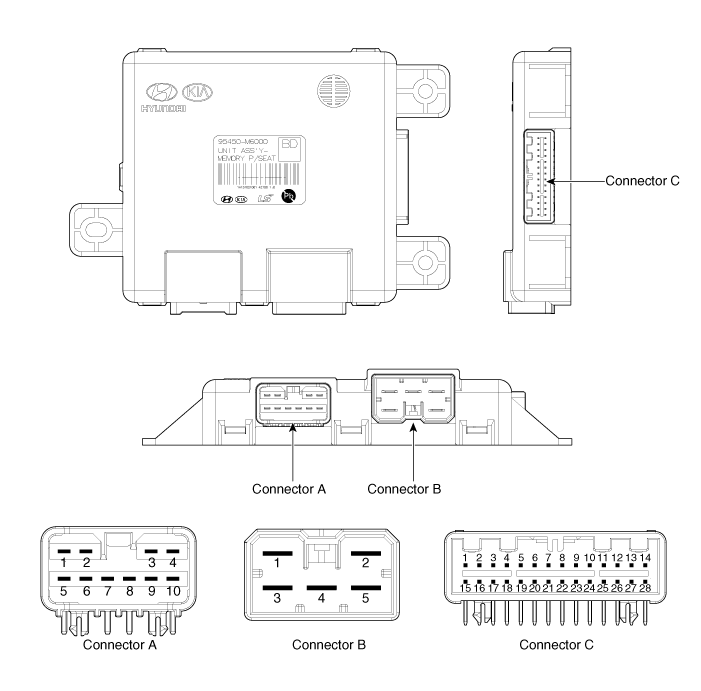

Connector and Terminal function |
No.
|
Connector A
|
Connector B
|
Connector C
|
1
|
-
|
Battery (+)
|
Slide switch (Front)
|
2
|
Recline motor (Front)
|
Ground
|
Recline switch (Front)
|
3
|
Rear height motor (Up)
|
Battery (+)
|
Front tilt switch (Up)
|
4
|
Slide motor (Front)
|
-
|
Rear height switch (Up)
|
5
|
-
|
Ground
|
-
|
6
|
Recline motor (Rear)
|
|
B-CAN (High)
|
7
|
Front tilt motor (Up)
|
B-CAN (Low)
|
8
|
Front tilt motor (Down)
|
-
|
9
|
Rear height motor (Down)
|
-
|
10
|
Slide motor (Rear)
|
Slide hall sensor
|
11
|
|
Front tilt hall sensor
|
12
|
-
|
13
|
Seat position sensor power
|
14
|
IGN 1
|
15
|
Slide switch (Rear)
|
16
|
Recline switch (Rear)
|
17
|
Front tilt switch (Down)
|
18
|
Rear height switch (Down)
|
19
|
-
|
20
|
Ground
|
21
|
-
|
22
|
-
|
23
|
-
|
24
|
Recline hall sensor
|
25
|
Rear height hall sensor
|
26
|
-
|
27
|
-
|
28
|
Battery (+)
|
Repair procedures
1. |
Before removing the driver side seat assembly, pull it upward to the
maximum by pushing the front seat height adjusting switch.
|
2. |
Disconnect the negative battery terminal.
|
3. |
Remove the front drive seat assembly.
(Refer to Body - "Front Seat Assembly")
|
4. |

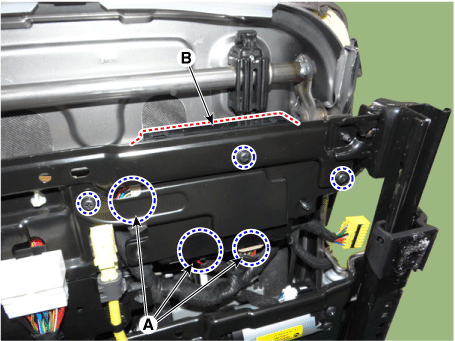

Remove the memory seat unit (B) by loosening the screws after disconnecting
the connector (A).
|
1. |
Install in the reverse order of removal.
|
Diagnosis with KDS
1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (KDS).
The diagnostic system (KDS) provides the following information.
(1) |
Self diagnosis : Checking failure and code number (DTC).
|
(2) |
Current data : Checking the system input/output data state.
|
(3) |
Actuation test : Checking the system operation condition.
|
(4) |
Additional function : Controlling other features including system
option setting and zero point adjustment.
|
|
2. |
Select the 'Car model' and the 'Power Seat Module (PSM)' to be checked
in order to check the vehicle with the tester.
|
3. |
Select the 'Current Data' menu to search the current state of the input/output
data.
The input/output data for the sensors corresponding to the power seat
module (PSM) can be checked.
|
4. |
To forcibly actuate the input value of the module to be checked, select
option 'Actuation Test'.
|
Specifications
Specifications
Memory Power Seat Unit
Item
Specifications
Rated voltage
DC 12 V
Operating voltage ...
