Kia Forte: Dual Clutch Transmission Control System / Input Speed Sensor 2

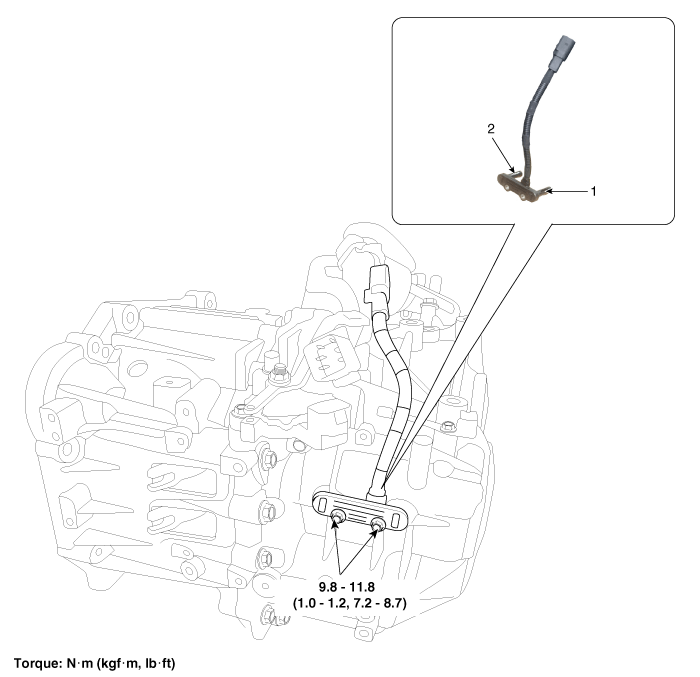

Components and components location

1. Input shaft speed sensor 1
(Odd)
|

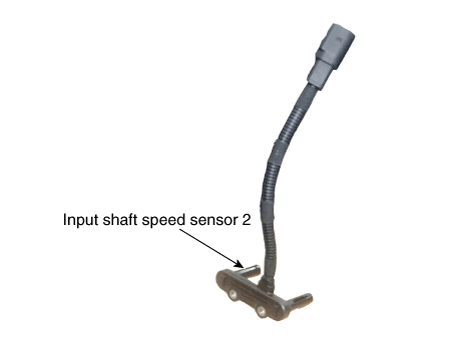

2. Input shaft speed sensor 2
(Even)
|
Specifications
Item
|
Specification
|
Type
|
Hall effect sensor
|
Operating condition
|
-40 to 302°F(-40 to 150°C)
|
Output signal
|
High: 11.8 - 16.8 mA
|
Low: 5.9 - 8.4 mA
|
Description and operation
• |
The input shaft speed sensor is important in that it detects the input
shaft RPM and sends this information to the Transmission Control Module
(TCM).
|
• |
This data is necessary for all operations including feedback control,
gear shift control and failure detection of other sensors.

|

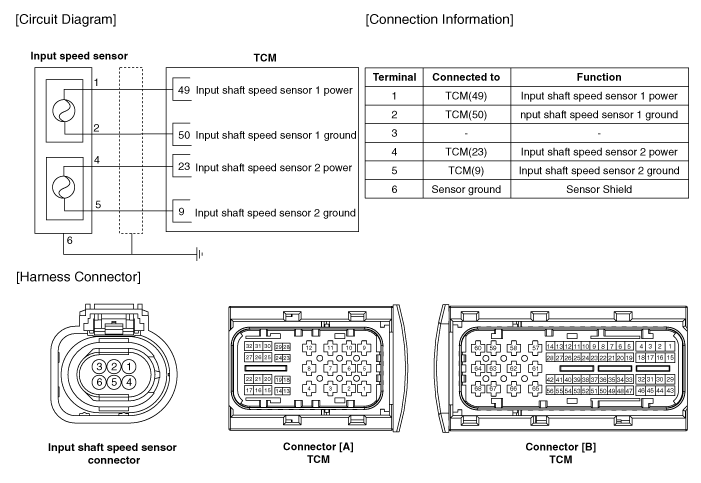

Schematic diagrams

Repair procedures
1. |
Remove the clutch actuator.
(Refer to Dual Clutch Transmission Control System - "Clutch Actuator
Assembly")
|
2. |

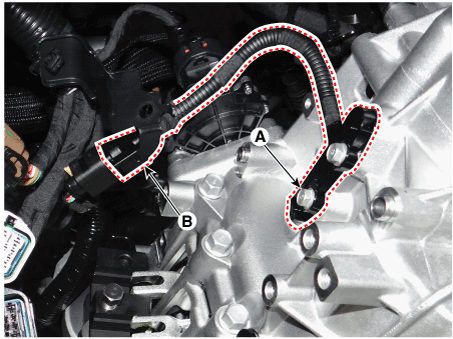

Remove the input speed sensor (A) by loosening the bolts after disconnecting
the connector (B).
Tightening torque :
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|

|
1. |
Install in the reverse order of removal.

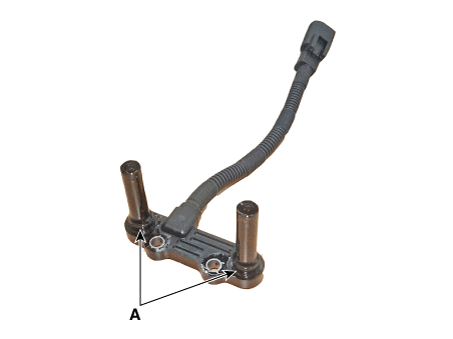

Before installing the input speed sensor, check the assembled
state of the O-rings (A) and apply gear oil to the surface of O-rings.

|
|
