Kia Forte: Windshield Wiper/Washer / Front Wiper Motor

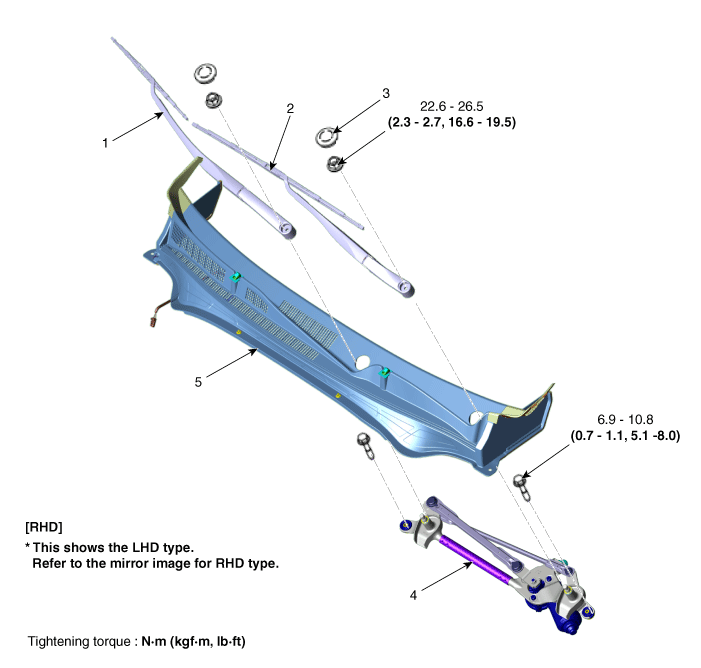

Components and components location
1. Wiper arm & blade (Passenger
)
2. Wiper arm & blade (Driver)
3. Wiper arm cap
|
4. Wiper motor & linkage assembly
5. Cowl top cover
|

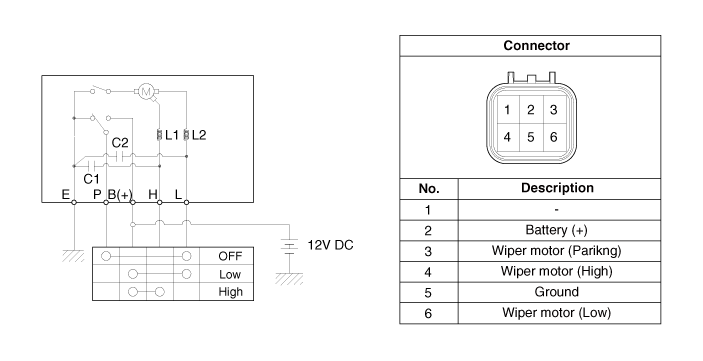

Schematic diagrams
Repair procedures
1. |
Remove the cowl top cover.
(Refer to Body - "Cowl Top Cover")
|
2. |

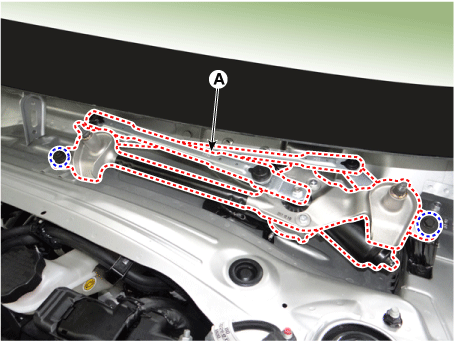

Remove the wiper motor & linkage assembly (A) after loosening the mounting
bolts.
Tightening torque : 6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0
lb·ft)
|
|
3. |

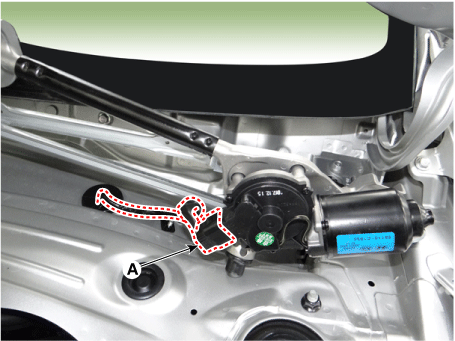

Disconnect the wiper motor connector (A).
|
1. |
Install in the reverse order of removal.
|
1. |

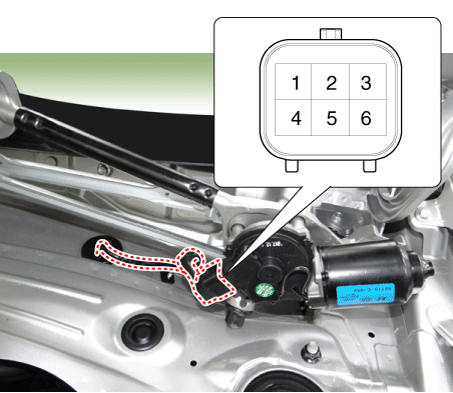

Remove the connector from the wiper motor.
No.
|
Description
|
1
|
-
|
2
|
Battery
|
3
|
Wiper motor (Parking)
|
4
|
Wiper motor (High)
|
5
|
Ground
|
6
|
Wiper motor (Low)
|
|
2. |

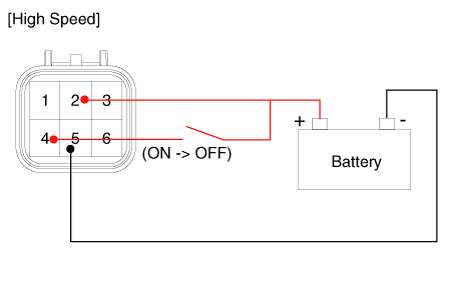

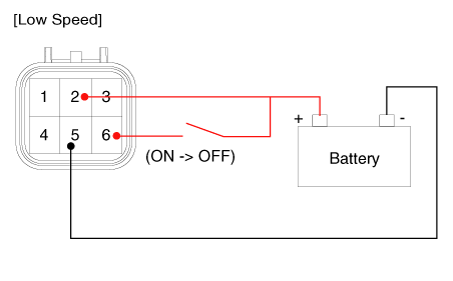

Attach the positive (+) lead from the battery to terminal 2 and the negative
(-) lead to terminal 5.
|
1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system (KDS).
The diagnostic system(KDS) provides the following information.
(1) |
Self diagnosis : Checking failure and code number (DTC).
|
(2) |
Current data : Checking the system input/output data state.
|
(3) |
Actuation test : Checking the system operation condition.
|
(4) |
Additional function : Controlling other features including system
option setting and zero point adjustment.
|
|
2. |
Select the 'Car model' and the 'Intergrated body control unit (IBU)'
to be checked in order to check the vehicle with the tester.
|
3. |
Select the 'Current Data' menu to search the current state of the input/output
data.
|
