Kia Forte: Cylinder Block / Fly Wheel

Kia Forte 2019-2025 (BD) Service Manual / Engine Mechanical System / Cylinder Block / Fly Wheel

Repair procedures
Removal and Installation
1.

Remove the manual transaxle assembly.

(Refer to Manual Transaxle System - "Manual Transaxle")

(Refer to DCT(Double Clutch Transmission) System - "DCT(Double Clutch Transmission")

2.

Remove the clutch cover.

(Refer to Clutch System - "Clutch Cover And Disc")

3.

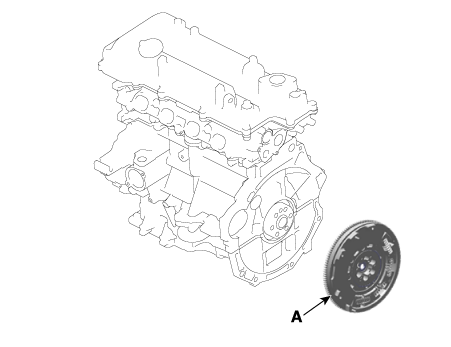

Manual Transaxle : Remove the flywheel (A).

Tightening torque :

71.5 - 75.5 N·m (7.3 - 7.7 kgf·m, 52.8 - 55.6 lb·ft)

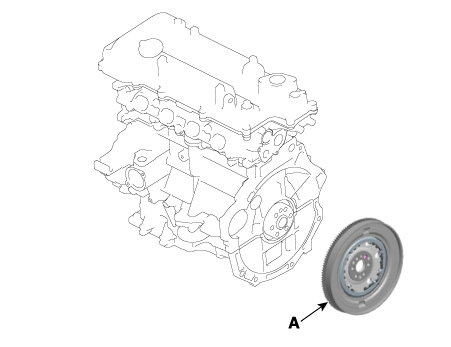

Dual clutch Transmission (DCT) : Remove the external damper flywheel (A).

Tightening torque :

71.5 - 75.5 N·m (7.3 - 7.7 kgf·m, 52.8 - 55.6 lb·ft)

4.

Install in the reverse order of removal.
