Kia Forte: Body Electrical System / Emergency Call System
Components and components location

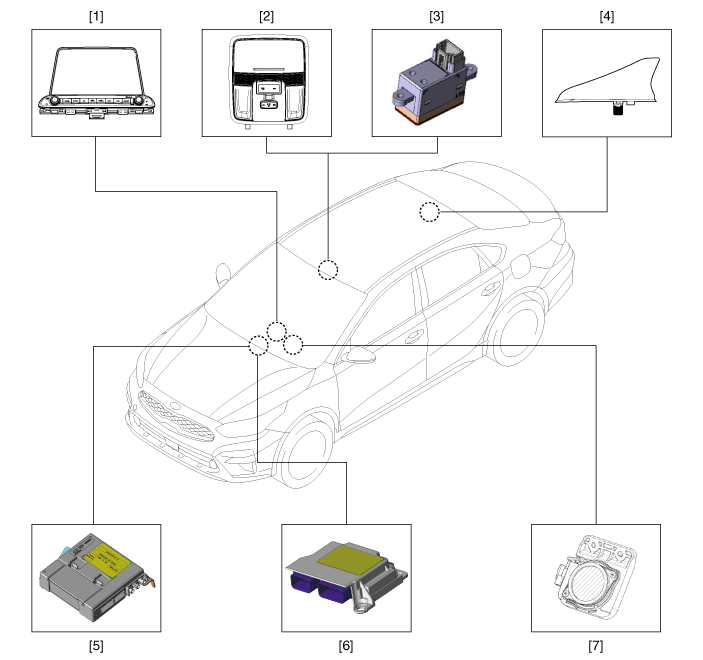

1. Head unit (AVN, Audio)
2. Emergency call switch
3. Emergency call MIC
4. Roof antenna
|
5. Emergency call unit
6. Supplemental restraint system control module (SRSCM)
7. Emergency call speaker
|
Description and operation
Emergency Call (E-Call)
When an accident occurs or the user's request is detected, it notifies the call
center of the vehicle status using the wireless network so that the center can provide
necessary emergency service.

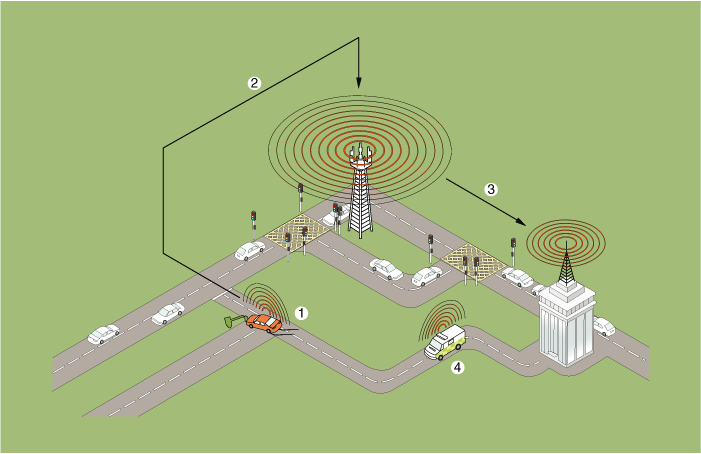

1. Emergency Call
2. Radio Communication network
|
3. Public-Safety Answering Point
(PSAP)
4. Emergency rescue service
|
E-Call Function
1. |
Automatic notification: Airbag signal triggered by accident is detected
and the call center is automatically notified of the accident.
(1) |
An accident occurs (Condition: Ignition "ON").
|
(2) |
Collision signal: Sent from the airbag control unit (ACU) to
the eCall unit
|
(3) |
Make a call: An emergency call is made to the most appropriate
public-safety answering point (PSAP).
|
(4) |
Transmit MSD: When connected, the Minimum Set of Data (MSD) is
transmitted via the in-band communication (technology that transmits
data through telephone voice channel).
|
(5) |
Connect to a call center agent who in turn provides emergency
service.
The E-Call function may not work properly if the vehicle
damage is grave or the airbag did not operate in a minor
accident.
|
|
|
2. |
Manual notification: The driver can operate the SOS button to notify
the call center of the accident manually.
(1) |
The driver decides to operate the SOS button.
|
(2) |
Make a call : An emergency call is made to the most appropriate
PSAP.
|
(3) |
Transmit MSD : When connected, the Minimum Set of Data (MSD)
is transmitted via the in-band communication (technology that transmits
data through telephone voice channel).
|
(4) |
Connect to a call center agent who in turn provides emergency
service.
To cancel a connection attempt while making a call by
pressing the SOS button, press the button again.
|
|
|

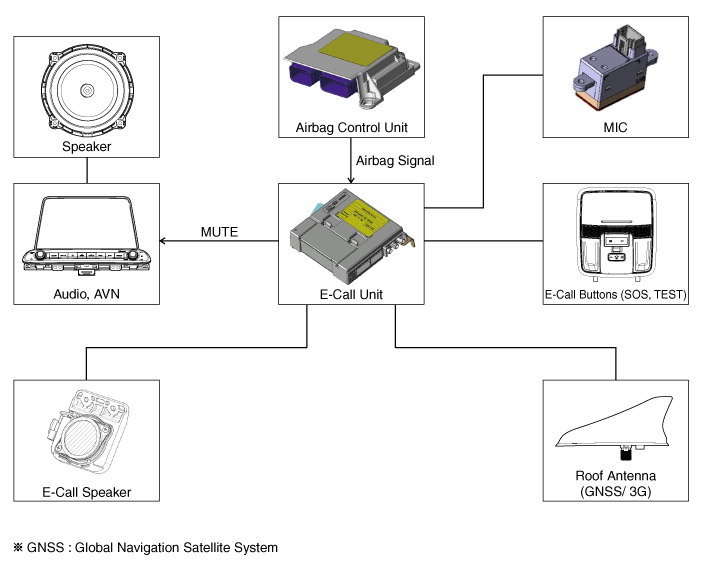

Configuration of eCall Controller
Input buttons & Indicators
• |
SOS button : Press this button to make a call to the call center.
|
• |
SOS TEST button : Press this button for 10 seconds or more to enter the
test mode and reset the eCall system.
|
• |
LED indicator lamp : The red and green LEDs turn on for 3 seconds after
the ACC is on and stay turned off in standby until the key is turned off.
|
– |
The red LED turns on when there is a problem with the E-Call system.
|
– |
The green LED turns on when the E-Call system is operating normally.
|
Schematic diagrams
Circuit Diagram
Description and operation
Description
The ECM (Electro Chromatic inside rear view Mirror) is one that automatically
dims to protect ...
Schematic diagrams
Connector and Terminal Function
Repair procedures
Removal
E-Call Unit
1.
Remove the main crash pad assembly.
(Refer to Body - & ...
