Kia Forte: AVN System / AVN Head Unit
Components and components location

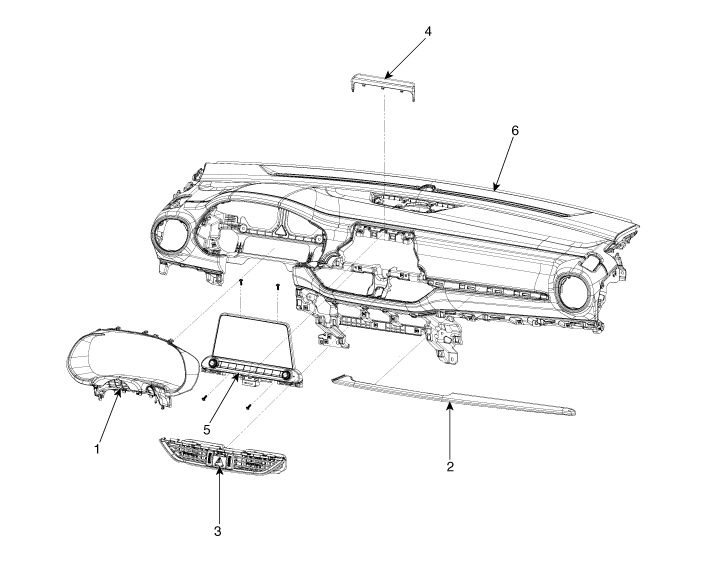

| Components |
| 1. Cluster fascia panel 2. Crash pad center garnish 3. Center air vent duct assembly |
4. AVN upper panel 5. AVN head unit 6. Crash pad |
Schematic diagrams

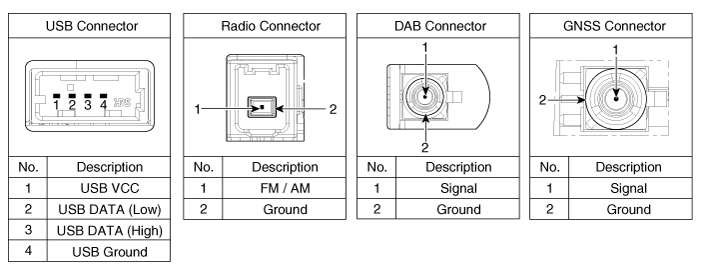

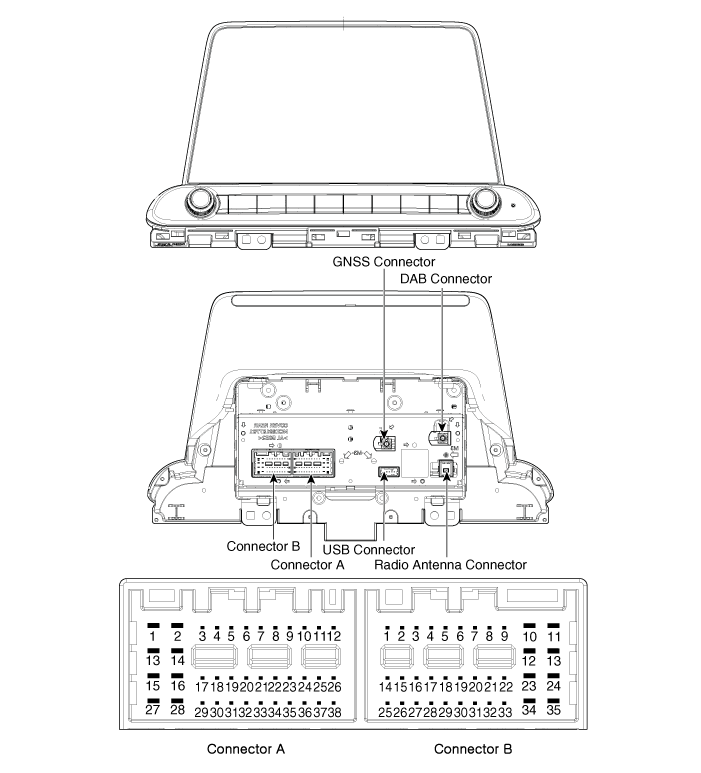

| Connector and Terminal Function |
|
No. |
Connector A |
Connector B |
|
|
External Amplifier |
Internal Amplifier |
||
|
1 |
- |
Rear door left speaker (+) |
- |
|
2 |
- |
Rear door left speaker (-) |
MIC (+) |
|
3 |
Amplifier navigation voice (+) |
- |
- |
|
4 |
Amplifier_SPDIF (High) |
- |
- |
|
5 |
- |
Antenna power |
|
|
6 |
RVM Camera : Power |
Illumination (+) |
|
|
7 |
RVM Camera : Video |
Multimedia-CAN (High) |
|
|
8 |
- |
- |
|
|
9 |
- |
- |
|
|
10 |
AUX Audio right_input |
Battery (+) |
|
|
11 |
AUX_Detect |
Battery (+) |
|
|
12 |
Steering wheel remote controller |
Ground |
|
|
13 |
- |
Front door left speaker (+) |
Ground |
|
14 |
- |
Front door left speaker (-) |
- |
|
15 |
- |
Front door right speaker (-) |
MIC (-) |
|
16 |
- |
Front door right speaker (+) |
- |
|
17 |
Amplifier navigation voice (-) |
- |
- |
|
18 |
Amplifier SPDIF (Low) |
- |
- |
|
19 |
Amplifier SPDIF (Ground) |
- |
Illumination (-) |
|
20 |
RVM Camera : Power ground |
Multimedia-CAN (Low) |
|
|
21 |
RVM Camera : Video ground |
- |
|
|
22 |
- |
ACC |
|
|
23 |
- |
- |
|
|
24 |
AUX Audio left_input |
- |
|
|
25 |
AUX Audio ground |
Reverse |
|
|
26 |
Steering wheel remote controller (Ground) |
- |
|
|
27 |
- |
Rear door right speaker (-) |
- |
|
28 |
- |
Rear door right speaker (+) |
- |
|
29 |
- |
- |
|
|
30 |
- |
- |
|
|
31 |
- |
- |
|
|
32 |
- |
- |
|
|
33 |
RVM Camera : Shield ground |
IGN1 |
|
|
34 |
- |
- |
|
|
35 |
- |
- |
|
|
36 |
- |
|
|
|
37 |
- |
|
|
|
38 |
Vehicle Speed |
|
|
Repair procedures
| Removal |
Take care not to scratch the crash pad and related parts. |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the cluster fascia panel. (Refer to Body - "Cluster Fascia Panel") |
| 3. |

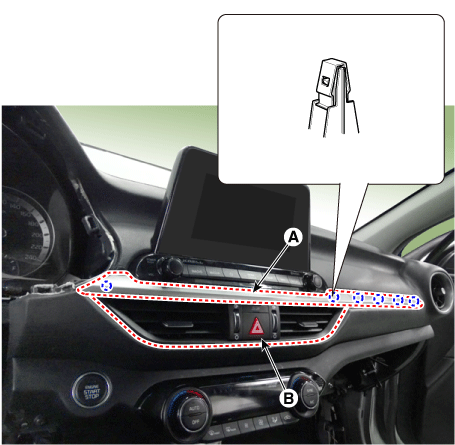

Remove the center air vent duct assembly (B) after removing the crash pad garnish (A).
|
| 4. |

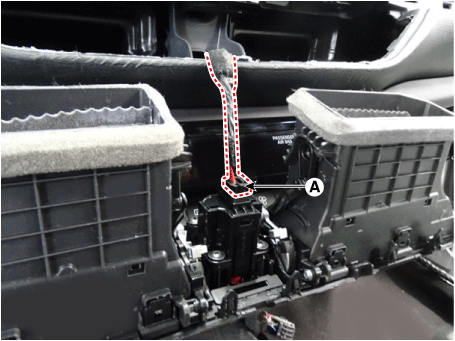

Disconnect the center air vent duct assembly connector (A).
|
| 5. |

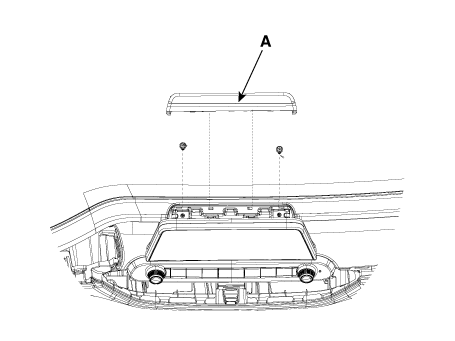

Loosen the screws after removing the AVN upper panel (A).
|
| 6. |

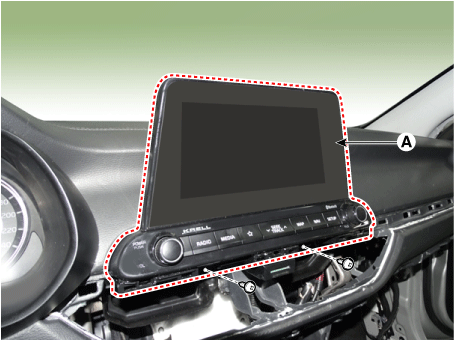

Remove the AVN head unit (A) after loosening the screws.
|
| 7. |

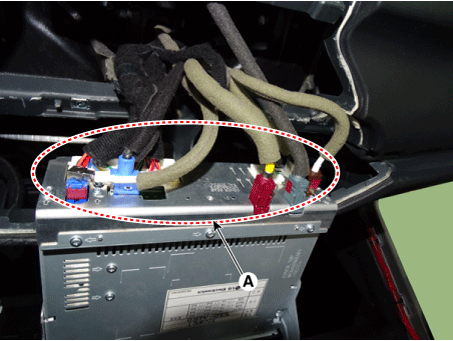

Disconnect the connectors (A) from AVN head unit.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
